paint & sundries
Phone (410) 485-3343 Fax (410) 325-2240
Toll Free 1-800-817-8183 Online:www.millsupplyco.com
Extension Ladders & Multi Ladders

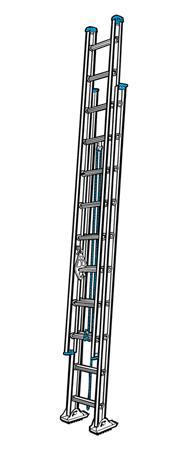

AluminumExtensionLadders :
- 1-5/8” Corrugated “D” Rungs, (1-1/4” Type III) (1-3/4” on Type IA) - Die-cast Aluminum Double Rung Locks - Combination Shoes with Spur Points - 3” Modified I-Beam Rail (2-1/2” on M13163) - Mar-resistant End Caps & Rail Enclosures
Item # M13061 M13063 M13066 M13070 M13073 M13078 M13090 M13096
Length
16’ 16’ 20’ 24’ 24’ 28’ 32’ 40’
U/M
Each Each Each Each Each Each Each Each
Working Length
13’ 13’ 17’ 21’ 21’ 25’ 28’ 35’
Type
IA III I I III I I I
Rating
300 lbs. 200 lbs. 250 lbs. 250 lbs. 200 lbs. 250 lbs. 250 lbs. 250 lbs.
Fiberglass Extension Ladders :
- Most popular for contractors and industrial use - 1-1/2” Corrugated “D” Rungs
- 3-5/16” Rails Type IA/ 3-3/16” Rails Type II - ExtrudedAluminumDouble Rung Locks - Combination Shoes with Spur Points
- Orange Non-Conductive Fiberglass Rails - Type IA - Green Non-Conductive Fiberglass Rails - Type II - Mar-Resistant End Caps & Rail Enclosures - Outside Guide Irons - 18” Overall Width - Type IA - 17-1/2” Overall Width - Type II
Item # M13171 M13166 M13167 M13173 M13168 M13174
Length
16’ 16’ 20’ 24’ 24’ 32’
U/M
Each Each Each Each Each Each
Working Length
13’ 13’ 17’ 21’ 21’ 29’
Type
IA II II IA II IA
Rating
300 lbs. 225 lbs. 225 lbs. 300 lbs. 225 lbs. 330 lbs.
AluminumMulti -L adder :
- Smooth curved rails, double riveted steps, extra wide flared bottom with slip resistant feet - Converts to twin stepladder, stairway stepladder, extension ladder and 2 scaffold bases - Stair and step height 4’ to 7’, scaffold height 1’ to 3’, rails are 2-5/8” wide, steps are 1” wide - 17’ overall height - 4 position
- Type IA / 300lbs. duty rating - 16” width
Item # M13148 U/M -Each
Ladder Stabilizer 48” :
- For aluminum ladders of all duty ratings and fiberglass ladders with side rails up to 3”H x 1-3/16”W - Also fits our Aluminum Multi -Ladder # M13148 - Mar-resistant rubber caps protect work surface - Fits aluminum series extension ladders up to 3-5/16” x 1-3/16” - Includes paint can hook and all hardware
Item # M13141 U/M -Each
291
