Designed To Meet Property Managers’ Needs

Exceptional Audio Quality

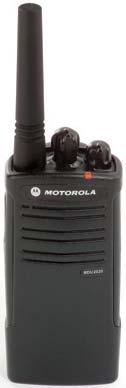

The RDX Series ™ audio is 30% louder than previ-ous Motorola XTN and AX models. 2000 mW audio output, speaker magnetic ﬁeld reduction, wind-noise reduction and improved RF speciﬁcations all help deliver this superior audio quality.

Rugged and Water Resistant

Durable metal diecast chassis helps radios hold up under demanding conditions. The RDX Series meets Military 810 C, D, E, F and IP54/55 speciﬁcations for shock, rain, humidity, salt fog, vibration, sand, dust, temperature shock, and high and low temperatures.

Customer Programming Software (CPS)*

Allows users to perform various programming functions. Plus, the CPS software provides access to new features such as Reverse Burst to eliminate unwanted noise, Radio Reporting to manage cloning and radio proﬁles, Manager Lock, Power Select, PL/DPL Defeat and two additional Time-Out Timers.

2 Watt RDX Series radios provide coverage of up to 250,000 sq. ft., 20 ﬂoors—4/5 Watt models cover up to 350,000 sq. ft., 30 ﬂoors.

Exceptional Industrial Design

Weighing just 8.6 ounces, the RDX Series is comfortable to wear all day. Plus, the user interface makes the radio simple and easy to use with little or no training.

Flexible and Durable Battery Life Solutions †

The custom RDX Series Li-Ion battery packs are designed and manufactured to ensure durability of the radio. 2 Watt radios feature the standard Li-Ion battery (up to 12 hrs of life per charge). 4/5 Watt radios feature the ultra high capacity battery (up to 18.5 hrs). An alkaline battery kit is available as an optional accessory (up to 26 hrs).

Business Exclusive Frequencies

Operates on 89 UHF (expanded vs XTN and AX models) or 27 VHF business-exclusive frequencies (varies by model); features 122 codes to help ensure a clear signal.

The convenient tri-color LED interface identiﬁes different radio features and radio status.

Quickly copy settings from radio to radio with either the Radio-to-Radio Cloning Cable or the Multi-Unit Charger accessories. (Both sold separately.)

An easy-to-use drop-in charger keeps radios charged, ready—and centrally located.

AdvancedVoice Activation (VOX)

Convenient hands-free operation when used with optional accessories.

Exceptional Audio Quality. Excellent Durability.

*CPS is available as free internet download. Windows ® XP, Windows 2000 compatible, separate USB cable required.

**Coverage will vary based on terrain, conditions and radio model.

† Battery save feature must be activated for optimal battery life.

†† Channel aliasing feature available on display models only.

Select models offer even more capability.

Select RDX Series models are compatible with duplex repeaters to greatly extend coverage area vs. radio-to-radio mode. (RDU4160d model.)

At the touch of a button, workers or supervisors can change channels to talk with different work groups. Models available with 2, 8, 10 or 16 channels.

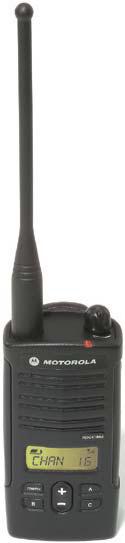

Simple programming enables each channel to have a user-deﬁned name. (Available on RDU2080d, RDV2080d and RDU4160d models.)

Front Panel Programmability

Five programmable buttons enable quick access to features such as scan list, power select and manager lock. (RDU2080d, RDV2080d and RDU4160d models.)

Available Special Order Only
